injection mold high quality steel mold die

FOB Reference Price:Get Latest Price
US $3,000-7,000 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
50 Roll/Rolls per Month
Port:
Keelung port,Taiwan
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Taiwan
Brand Name:
Intertech(Taiwan)
Model Number:
high quality steel mould die mode figure formen mold
Shaping Mode:
Plastic Injection Mould
Product Material:
Plastic
Product:
injection mould high quality steel mould die mode figure formen mold
Product Name:
injection mould high quality steel mould die mode figure formen mold
Mould material:
P20
Design software:
CAD
Cavity:
Multi Cavity
Packaging & Delivery
Packaging Details
standard export wooden box packed, fumigation (upon required)
Delivery Time
T1, 20~30 days, with parts measurment report (upon required)

injection mould high quality steel mould die mode figure formen mold



Product Description





- Customer design service.
- Prototyping.
- Mold making.
- Manufacturing process control.
- Mold flow analysis service available !
- Reverse engineering.
- Customer molding & assembly.
- Cold runner mold and hot runner mold (MoldMaster, Incoe, Masterflow, LKM, Yudo system…etc)

100% Workermanship and Performance Level in Taiwan…


Highlight:

Excellent in interchangeable cores molds design & making. Molds can be interchangeable on molding machines


Mold Steel:

Buderus, Assab, AISI & JIS (including preharden steel and fully harden steel) Japan and Germany imports steel
P20 (=1.2311), H13 (=1.2344), Starvax 420 (=stainless steel)


Mold Base:
Hasco standard, European standard, world standard

Surface Finish:
Texture (MT standard), high gloss polishing


Engraving:
Date stamps (year and month), logotype,etc


Mold sampling-
Mold trial:

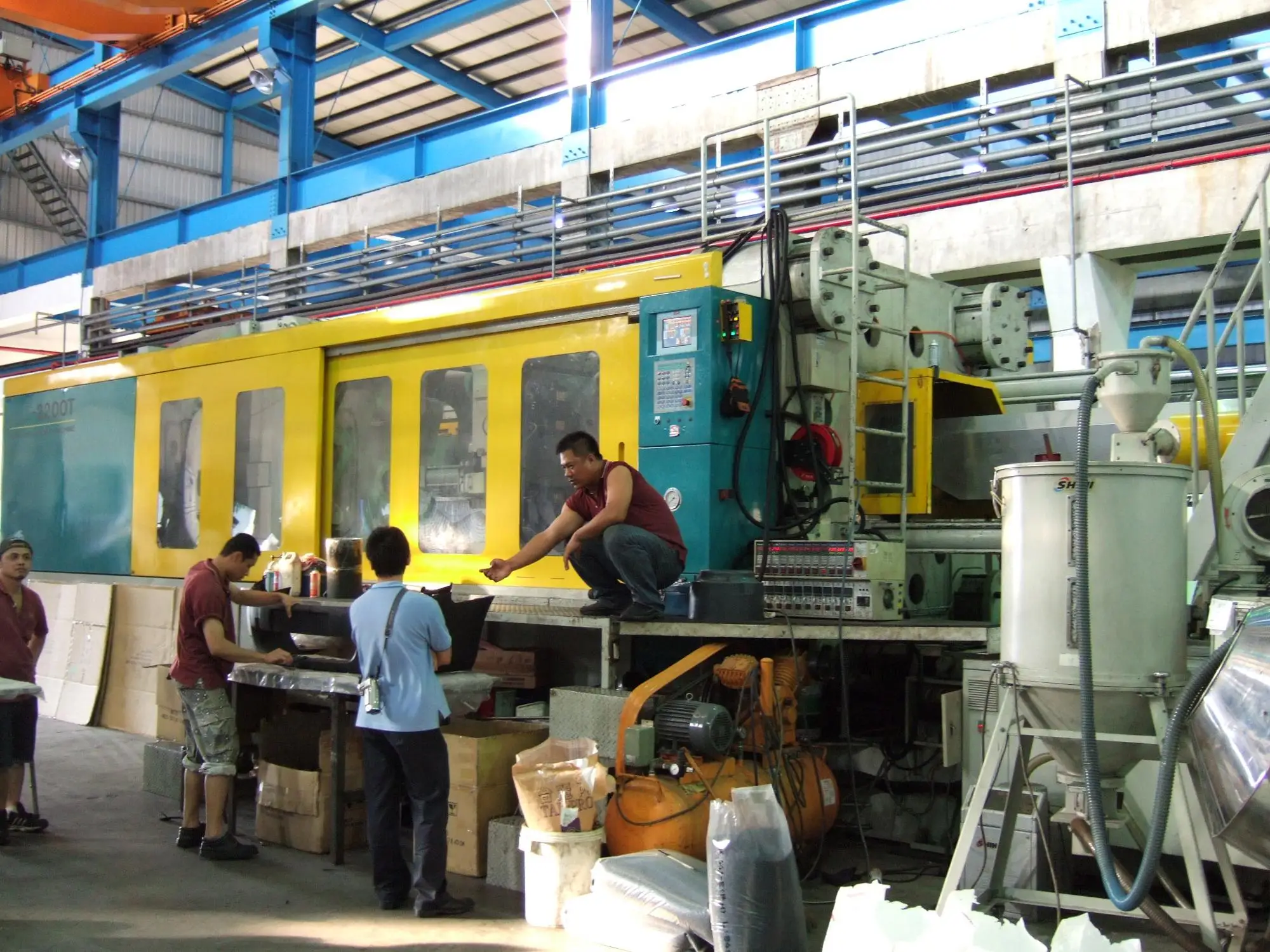

Trial molding machine available : from 50~2500T





Product Name

rubber injection mould high quality steel mould die mode figure formen mold

Plastic Materials:

PS, ABS, PP, PVC, PMMA, PBT, PC, POM, PA66, PBT+GF30%

Mold Structure:

Injection Mould, Plastic Mold, Overmould, 2k mould, Die-Casting Mould, Thermoset Mold, Stack Mold, Interchangeable Mold, Collapsible Core Mold, Die Sets, Compression Mold, Cold runner system LSR Mold,…etc.

Mould Base:

HASCO standard, European standard, World standard

Surface Finish:

Texture (MT standard), high gloss polishing, Mirror finish etc

Cavity / Core Steel:

P20, 2311, H13, 2344, Starvax 420, 236, AdC3, S136, 2312, 2379, 2316, 2083, Nak80, 2767 etc.

Cavity:

Single cavity, Muti Cavity, based on customer’s requirement.

Hot / Cold Runner:

HUSKY, INCOE, YUDO, HASCO, DME, MoldMaster, Masterflow, Taiwan made brand…etc.

Mould Life:

1,000 to 1,000,000 shots (according to your working environment)

Softwares:

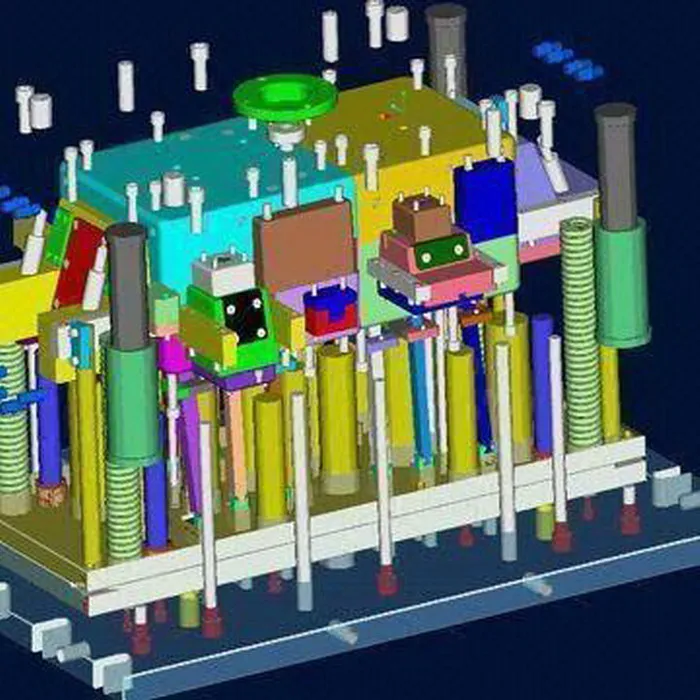

CAD, CAM, CAE, Pro-E, Solid works…etc.

Equipments:

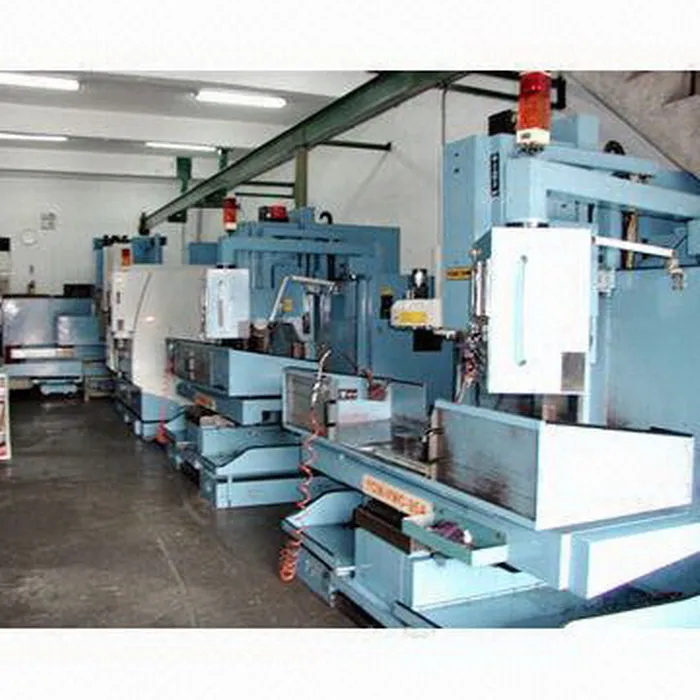

High speed CNC, standard CNC, EDM, Wire Cutting, Grinder, Plastic Injection Molding Machine for testing mold from 50-3000T available.

Mold Lead Time:

T1, 20~50 days, parts measurement report (upon required).

Annual Output

250 sets of mold





FAQ



To know us more please contact us with your ideas / projects / drawings, so that we can start our studying / engineering job...



To know us more, please visit

www.taiwanmoldmaker.comwww.intertech.net.tw

1. Besides molds, do you generate products as well?

    Yes, we can make your projects here in our factory, Taiwan for you. But we only make it from making a new mold...then, from above new mold, making parts out of it. We make the production job for our customers in Taiwan. In other words, we do not have any existing mold. In short, we produced customized molds and products but we also provide our customers reverse engineering service.



2. How can I get the quote?

    First, we need our customers provide their technical data like 2D, 3D drawings or samples. After receiving your project, our experienced and professional team will start to study and evaluate it. During this time, our team will keep discussing with the designers to make sure that every details are clear. Finally, we will give our customers quotation reports.



3. Does your company provide design service?

    Absolutely yes. We have helped countless customers from Europe and North American to invent their new products. Our experienced engineers give our customers useful suggestion to help them solve the problems that they encounter when designing and process the molds and products.



4. Why is your price not so competitive?

    First of all, what we are famous for is that we produce interchangeable core mold, which needs not only precision work but also flexible team work to adjust to what our clients really want. Also, all of our steel is from Japan and Germany and all processing steps are carried in Taiwan under the supervision of our professional engineers. We appreciate that all of our customers emphasized on quality and efficiency and that's why our company wants provide too.
